| Brand Name: | QLD |
| Model Number: | QLD-GS-HLT |
| Price: | 1500000-1500000 |

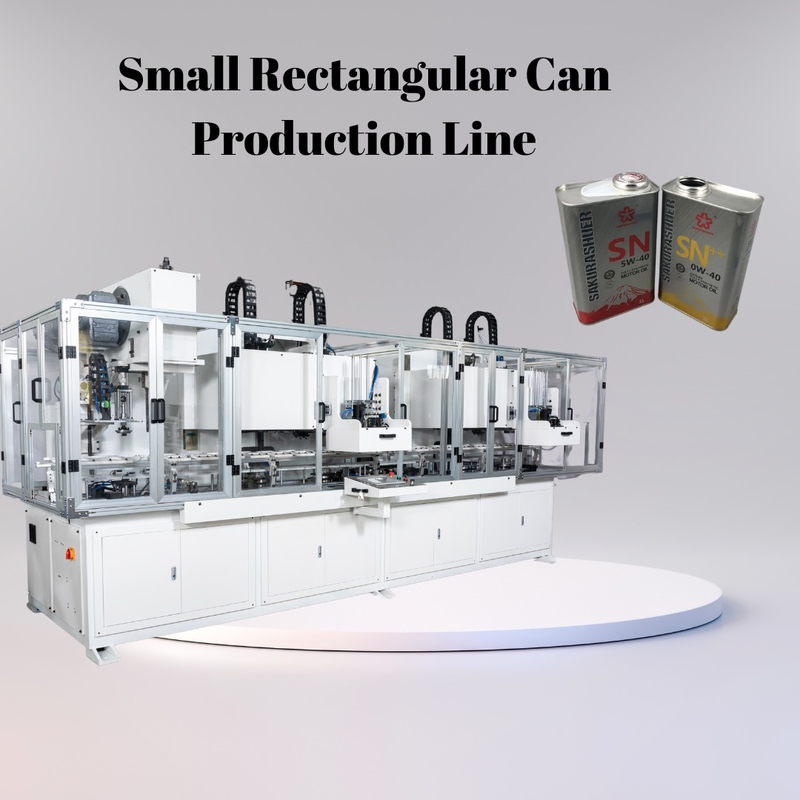

Small Rectangular Can Production Line
Production Process
Cans Upright--------Welding Line Positioning--------Expanding--------Flanging-----Bottom Seaming
------180°turning --------Flanging--------Cover Seaming--------Finished Can Body Output
Production Introduction
The production line is an integrated production line forsmall square cans, which integrates welding seam positioning, expansion, flanging and bottom sealing, can inversion, and flangin and cover. The production line adopts cam feeding can cam synchronous can holding, and the speed is continuously adjustable; the magnetic suspension separates the cap, and the servo feeds the cap to the bottom of the pressure head.
Main Technical Parameters
|
Size Of Machine |
5350×1900×2350(mm) |
|
Voltage |
Three-Phase Four-Line 380V |
|
Production Speed |
40CPM |
|
Power Of Whole Line |
App.33kw |
|
Applicable Can Height |
100-255(mm) |
