| Brand Name: | QLD |
| Model Number: | QLD-GS-HLT |
| Price: | 1500000-1500000 |

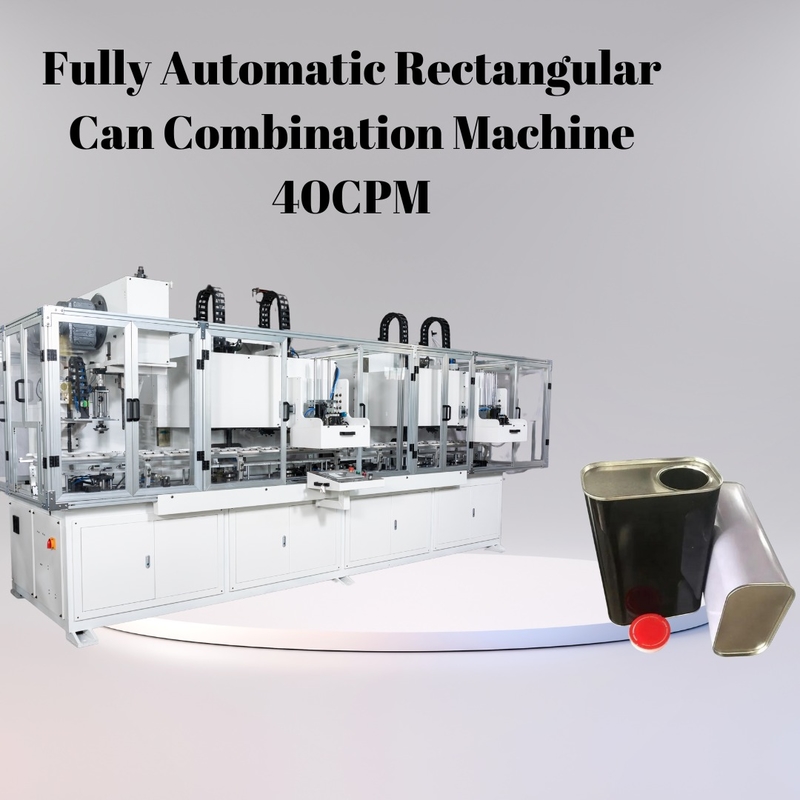

Fully Automatic Rectangular Can Combination Machine 40CPM
Production Process
Production Introduction
Integrated Design: Combines all processes in one continuous line
Precision Engineering: Cam-driven mechanisms ensure timing accuracy
Automated Handling: From initial welding to final sealing
|
Seam Welding And Positioning |
Precise alignment of can body seams |
|
Expansion |
Uniform shaping of can diameter |
|
Flanging |
Edge Preparation For Sealing |
|
Bottom Sealing |
Automatically Feed lids And Seal Bottom |
|
Can Inversion |
180° Turning For Top Processing |
|
Cover Flanging And Sealing |
Final Lid Attachment |
Synchronized Cam System:
Smooth can feeding and positioning
Continuously adjustable speed
Advanced Cap Handling:
Magnetic suspension for gentle cap separation
Servo-controlled precision placement
Benefits:
Fully integrated production
Consistent high-quality output
Flexible production speed
Minimal manual intervention
Main Technical Parameters
|
Size Of Machine |
5350×1900×2350(mm) |
|
Voltage |
Three-Phase Four-Line 380V |
|
Production Speed |
40CPM |
|
Power Of Whole Line |
App.33kw |
|
Applicable Can Height |
100-255(mm) |
