| Brand Name: | QLD |
| Model Number: | QLD-HLT-ZHJ |
| Price: | 1500000-1500000 |

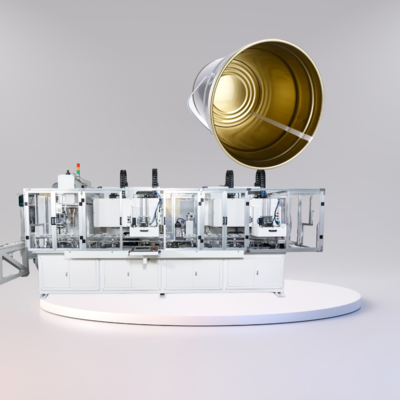

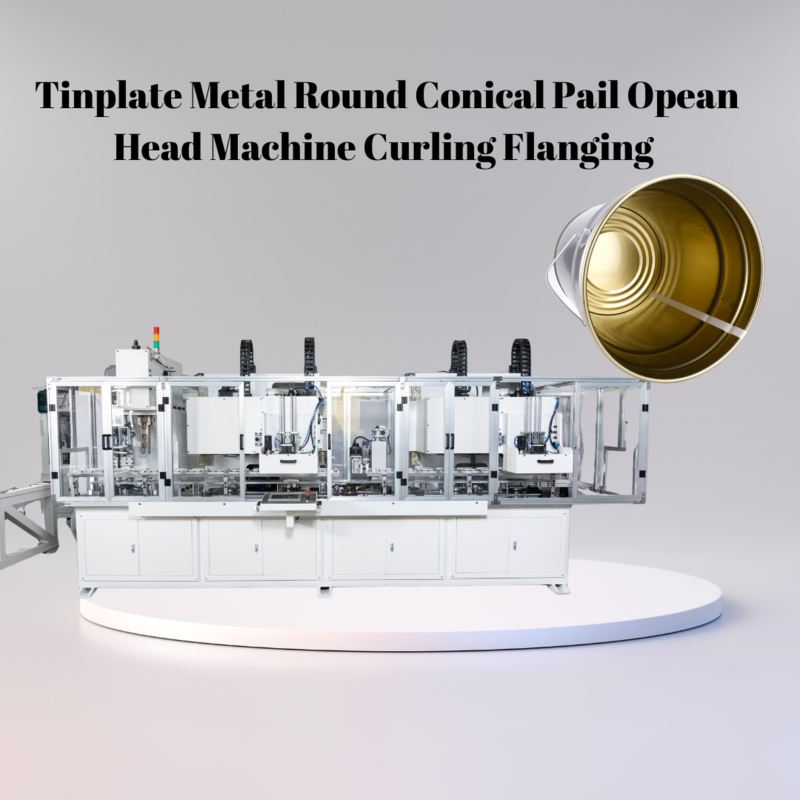

20L Tinplate Metal Round Conical Pail Opean Head Machine
Product Introduction
|
Function Area |
Technical Description (in English) |
|
Forming Process |
The line uses rolling flanging, rolling pre-curling, and curling processes to shape the barrel mouth. |
|
UN Compliance |
Ensures the barrel mouth meets UN barrel requirements and prevents body sinking during forming. |
|
Sealing Process |
Adopts a double-seaming machine head to achieve seven-layer roll sealing. |
|
Sealing Overlap Rate |
The overlap rate of the seven-layer roll can reach up to 70%, ensuring tight and strong sealing. |
|
Weld Seam Positioning |
The rib position is used to accurately locate the weld seam. |
|
Rib Expansion Design |
Rib expansion is designed to avoid voids, preventing overlapping or surface scratches on the barrel. |
|
Control System Options |
Optional original Siemens motion control system and German SEW reducer improve system stability. |
Main Technical Parameters
|
Size Of Machine |
8500×1750×3100(mm) |
|
Voltage |
Three-Phase Four-Line 380V (Can Be Contigured According To Different Countries) |
|
Production Speed |
30CPM |
|
Power Of Whole Line |
25 kw |
|
Air Pressure |
Not Lower than 0.6Mpa |
|
Connection Height |
1000±20mm |
|
Weight Of Whole Line |
APP.12T( Not Include Ear Welder) |
Production Porcess
Stand And Convey Cans --------Expand Body Into Conical Shape -------- Pre-Curling And Pre-Flanging -------- Curling And Flanging -------- Beading -------- Turn Over -------- Seam Bottom -------- Can Body Output -------- Conncet Following Operations
